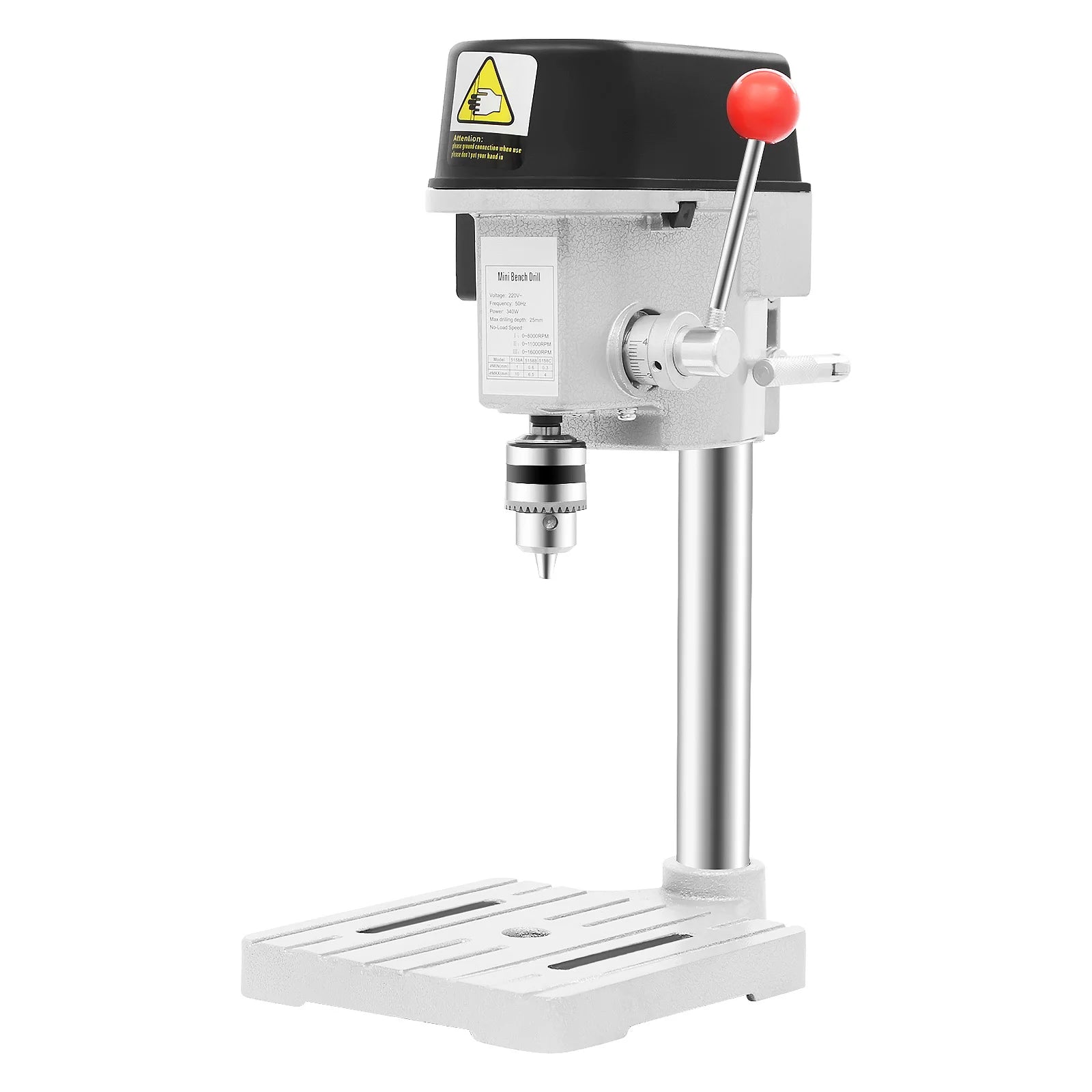

340W High-Precision Portable Bench Drill Machine Mini Press, 3-Level Adjustable Speed Corded Mini Table Drill
340W High-Precision Portable Bench Drill Machine Mini Press, 3-Level Adjustable Speed Corded Mini Table Drill
Couldn't load pickup availability

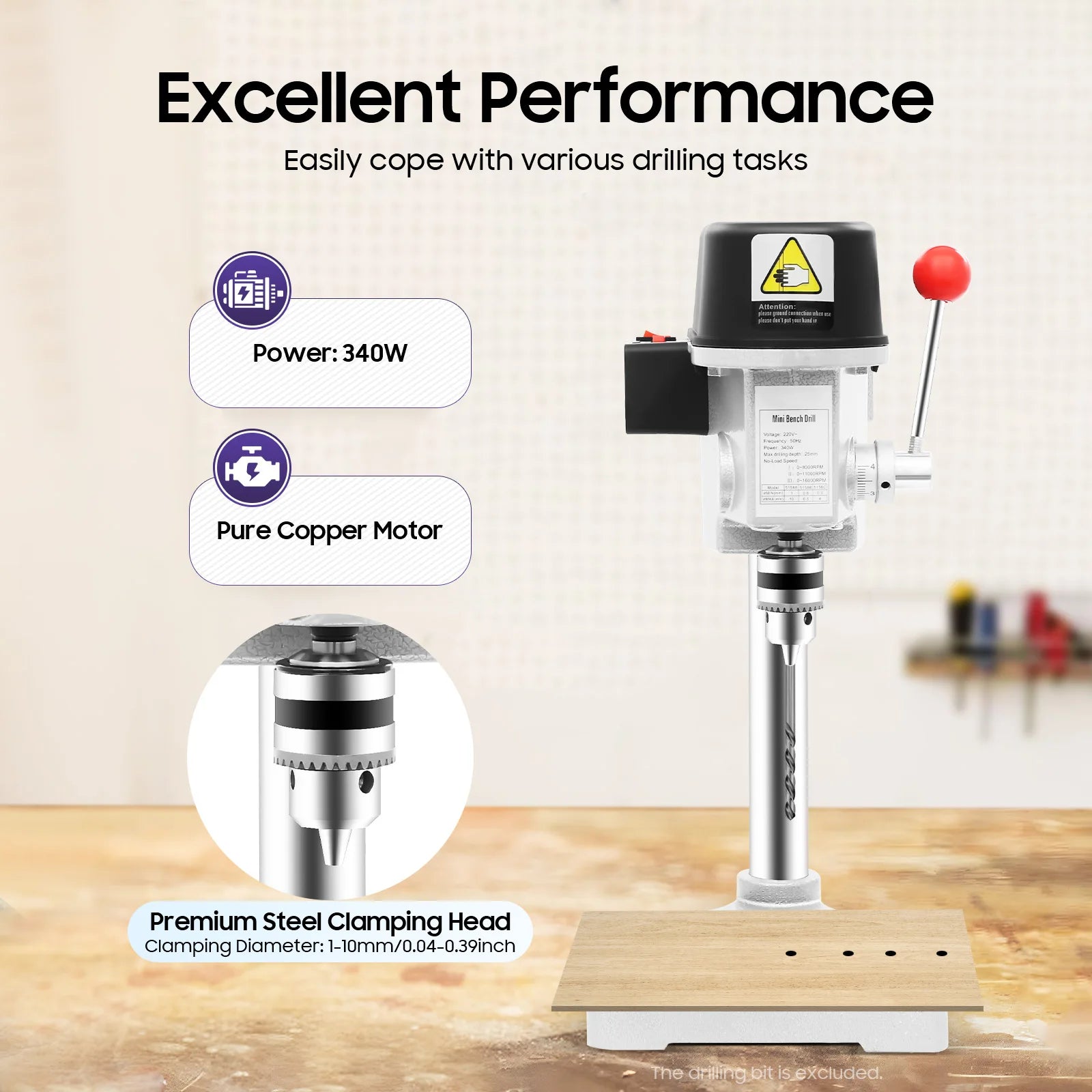

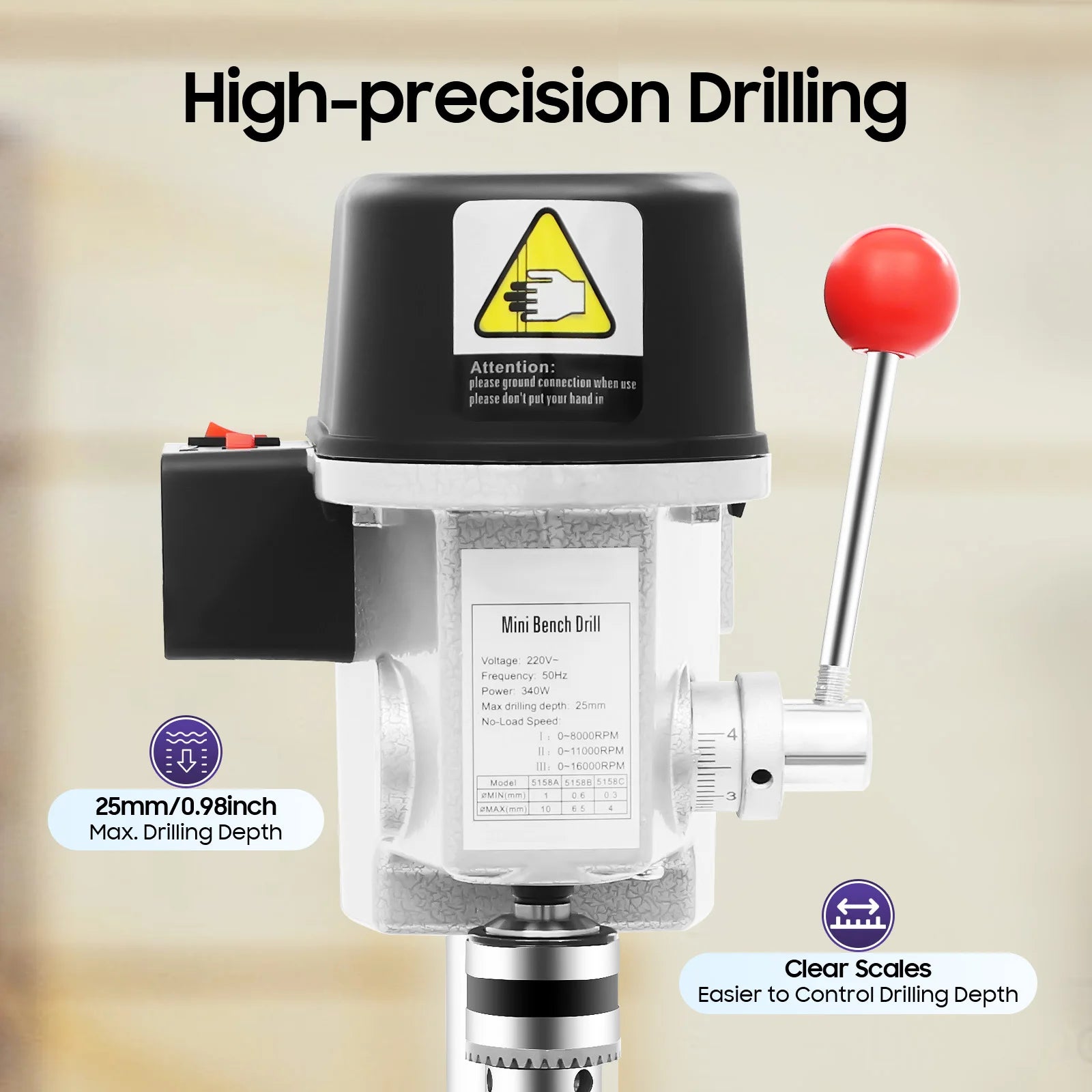

The 340W powerful power, pure copper motor, and premium steel collet make the product have stable performance, and can easily cope with a variety of materials drilling tasks. The clear markings on the handle dial allow you to visually control the product's pressure stroke and accurately adjust the drilling depth within the range of 0-0.98 inches. It has a 3-level speed adjustment function (I. 0-8,000 rpm; II. 0-11,000 rpm; III. 0-16,000 rpm), which allows you to operate the product at a suitable and precise speed.
Key Features

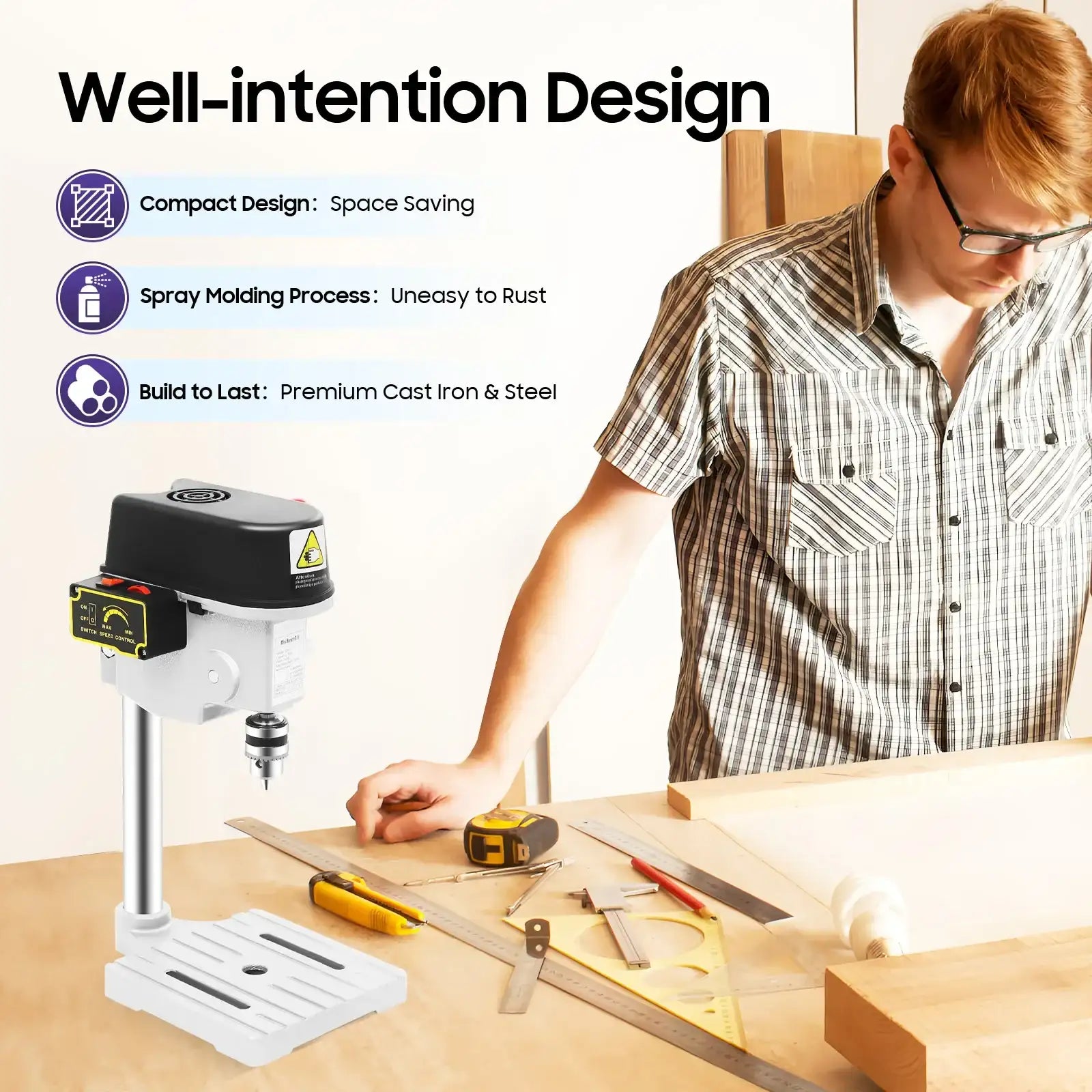

Stable Structure: The sturdy support column and thickened base make the product not easy to shake, which can effectively enhance the stability of the operation.
Thoughtful Design: The ball handle can provide a good grip and reduce the fatigue caused by prolonged operation. The clamping range of 0.04-0.39 inches can adapt to different specifications of drill bits (not included), making drilling more flexible and diverse.

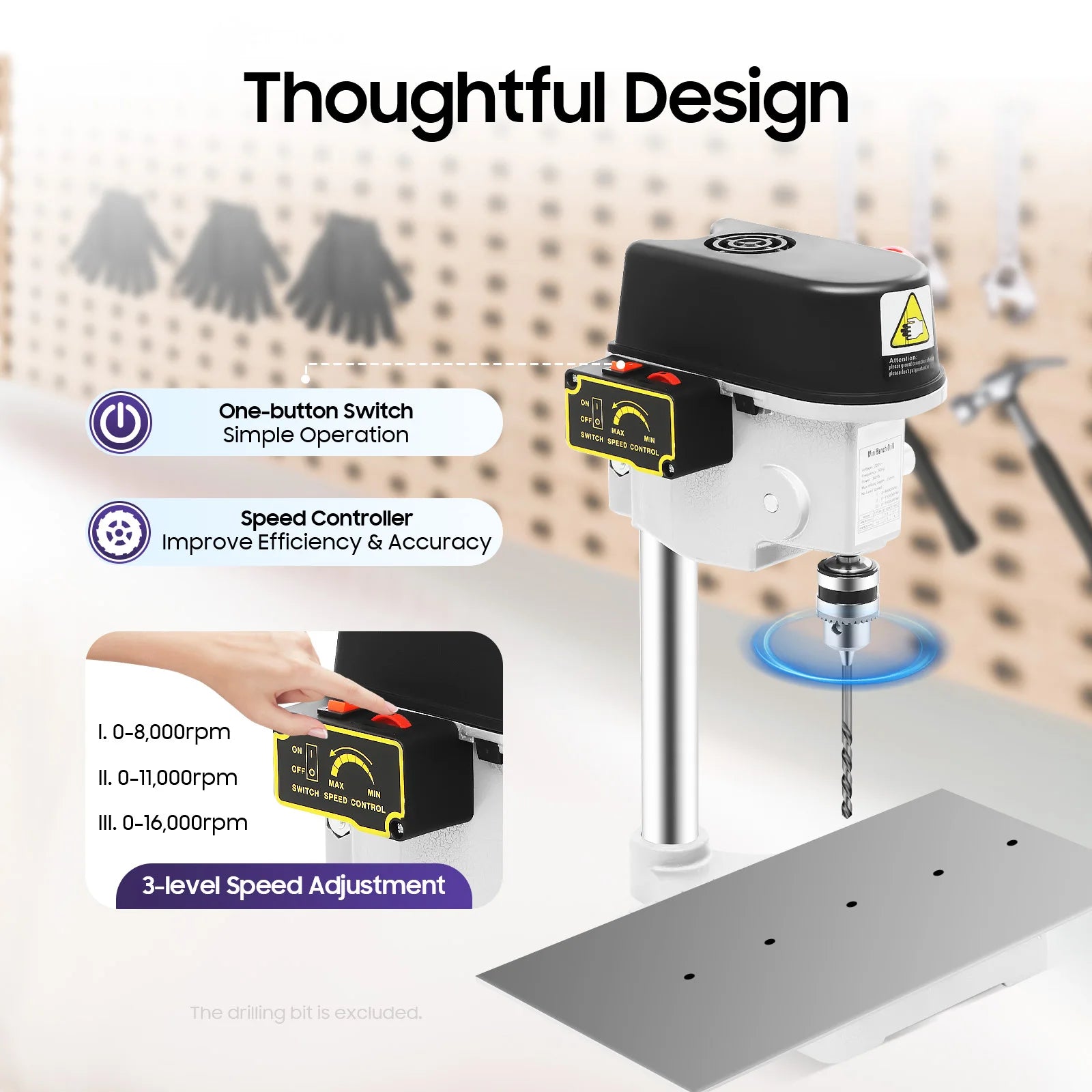

Easy to Operate: The desktop design, one-button switch, roller speed control, and the way of pushing the handle for operation are more labour-saving, which is easier to operate than hand-held drills.
Small Footprint: The small footprint(6.69*6.69 in) makes it easy to store and place without taking up much space.
DIY Fun: You can use our product to give full play to your imagination and make the beads, acrylic plastic, handmade woodwork, etc. more unique in your hands.
Details
Fixed Slots: The attachment fixing slots on the base can help stabilize the drilling components and ensure the smooth progress of drilling work.
Cooling Holes: The large cooling holes help the machine to dissipate heat promptly and quickly, increasing the service life of the machine.
Long Power Cord: The equipped 4.43 ft power cord reduces the use distance limitation.
Application
It can be used for drilling iron (diameter ≤0.24in), wood (diameter ≤0.63in), plastic board, aluminium board, composite board, resin board, thin metal, circuit board, and other non-rigid materials. It can also be used for teaching experiments, DIY crafts, or furniture, such as Buddhist beads, shells, crystals, toy models, and so on.
Specification
Model: 5158A
Colour: Silver, Black
Material: Steel, Cast Iron
Process: Spray Moulding
Assembly Required: Yes
Power Source: Corded Electric
Motor Type: Brushed Pure Copper Motor
Plug Type: UK Standard
Power: 340W
Voltage: 220/220/100V, 50Hz
No-load Speed: I. 0-8,000 rpm; II. 0-11,000rpm; III. 0-16,000rpm
Power Cord Exposed Length: 1.35m/4.43 ft
Max. Drilling Depth: 25mm/0.98 in
Collet Clamping Diameter: 1-10mm/0.04-0.39 in
Column Diameter: 3.2cm/1.26 in
Column Height: 30cm/11.81 in
Base Size: 17*17cm/6.69*6.69 in
Package Size: 30*24.5*20cm/11.81*9.65*7.87 in
Gross Weight: 5.6kg/12.35 lbs
Net Weight: 5.32kg/11.73 lbs

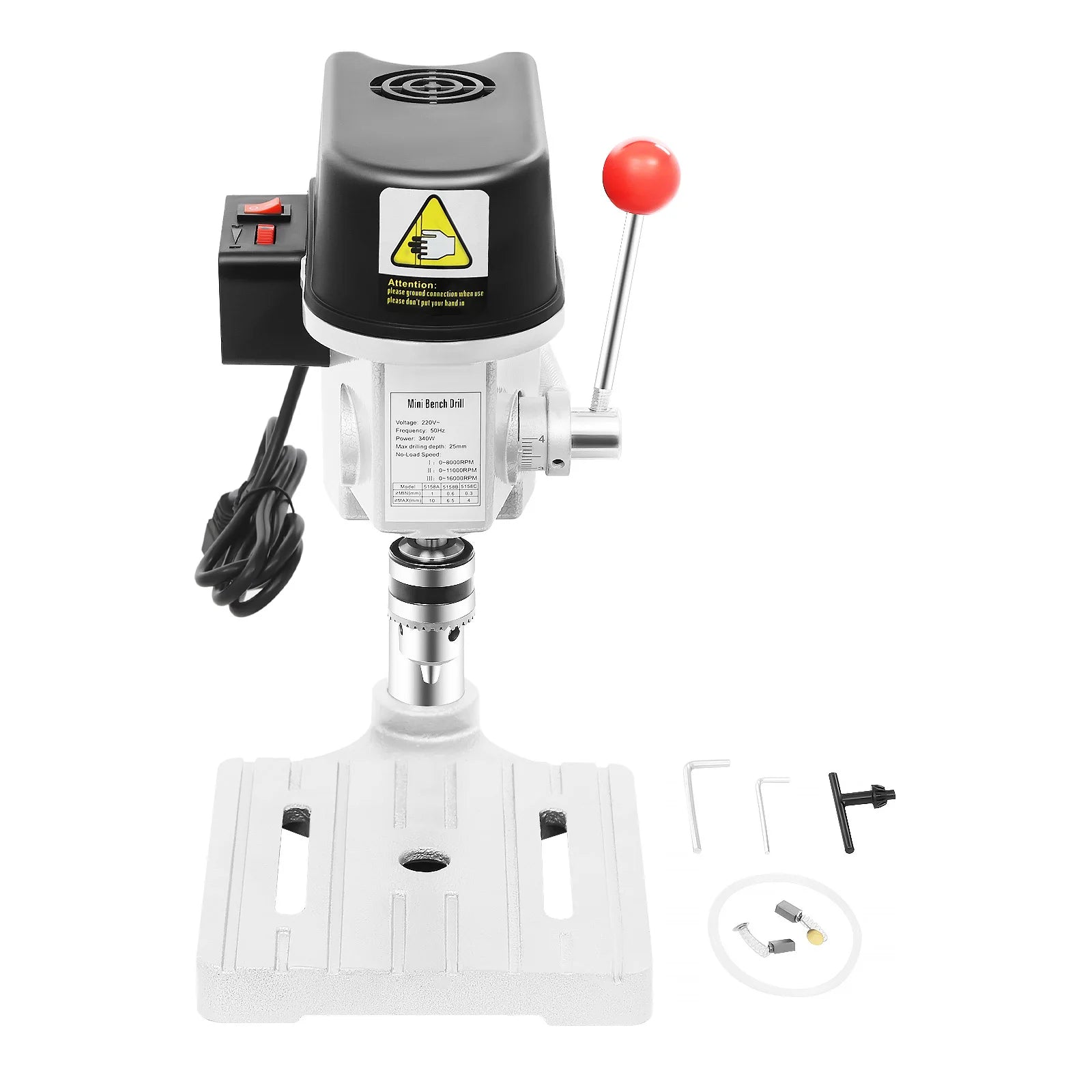

Package Included
1* Portable Bench Drill Press
2* Hexagon Wrenches(0.16 in; 0.1 in)
1* Collet Key(0.24 in)
1* Belt Ring
1Pair * Carbon Brushes
1* English Manual
Other Accessories for Assembly
Notes
1.Please read the user manual carefully before use and pay special attention to the safety precautions included.
