Pass through RJ45 Crimp Tool Kit Ethernet Crimper CAT5 Cat 5E Cat 6 Crimping Tool Kit 3 in 1 - Crimp Cutting Peeling

Description：

Type: RJ45 crimping tool

Packaging size: 23 x 23 x 5cm

Weight: 0.8kg

Colour: Black Yellow

Hole position: Double hole

Crimp range: Ethernet cable, telephone cable

Material: Tool steel+ABS

Suitable for: RJ45 port (Ethernet cable) RJ11-RJ12 port (telephone line)

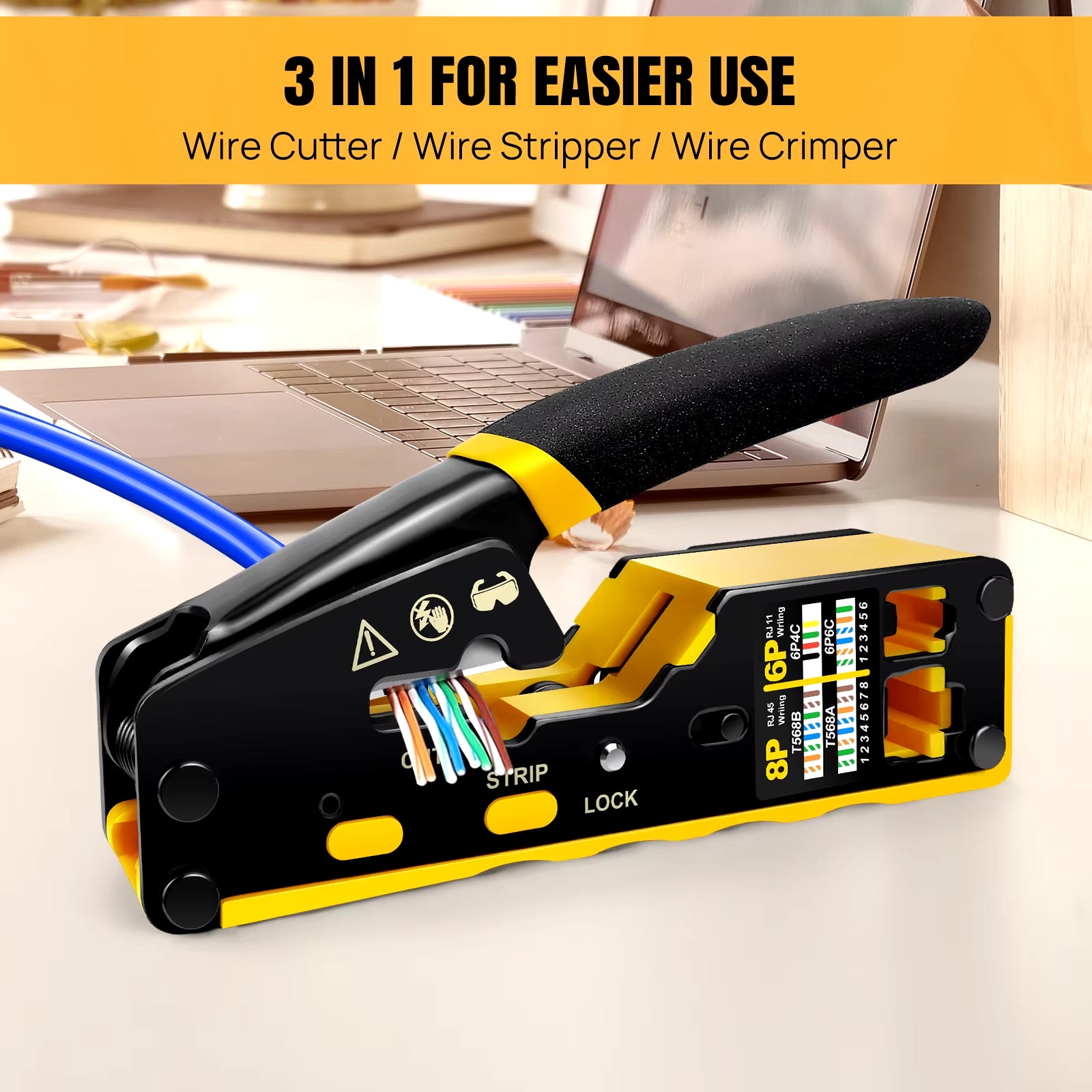

Function: Pressing, cutting, peeling, 3-in-1

Compatibility: Cat5, Cat5e, Cat6 Ethernet cables

remarks

Cat5 is compatible with 5 series Ethernet cables, such as Cat5e; Cat6 is the same

CAT5/CAT6 refers to Ethernet cables with different speeds

The difference between 8P and 6P in dual holes:

8p is the port of RJ45

6p is the port of rj11 - rj12

8p is the Ethernet cable head, 6p is the telephone cable head

Feature:

Fast, reliable RJ45 Crimp Tool for voice and data applications with Pass Through 50PCS RJ45 connector plug, 50PCS Covers Network/Phone cable tester, plier, Mini Cable Stripper (Replacement blades available)

RJ45 Pass Through Crimp Tool - Reduce prep work time significantly with Pass Through technology

Compact RJ45 Crimper - crimps and trims RJ45 Pass Through connectors onto paired-conductor cables (round STP/UTP cables)

Wiring diagram on the tool helps eliminate rework and wasted materials

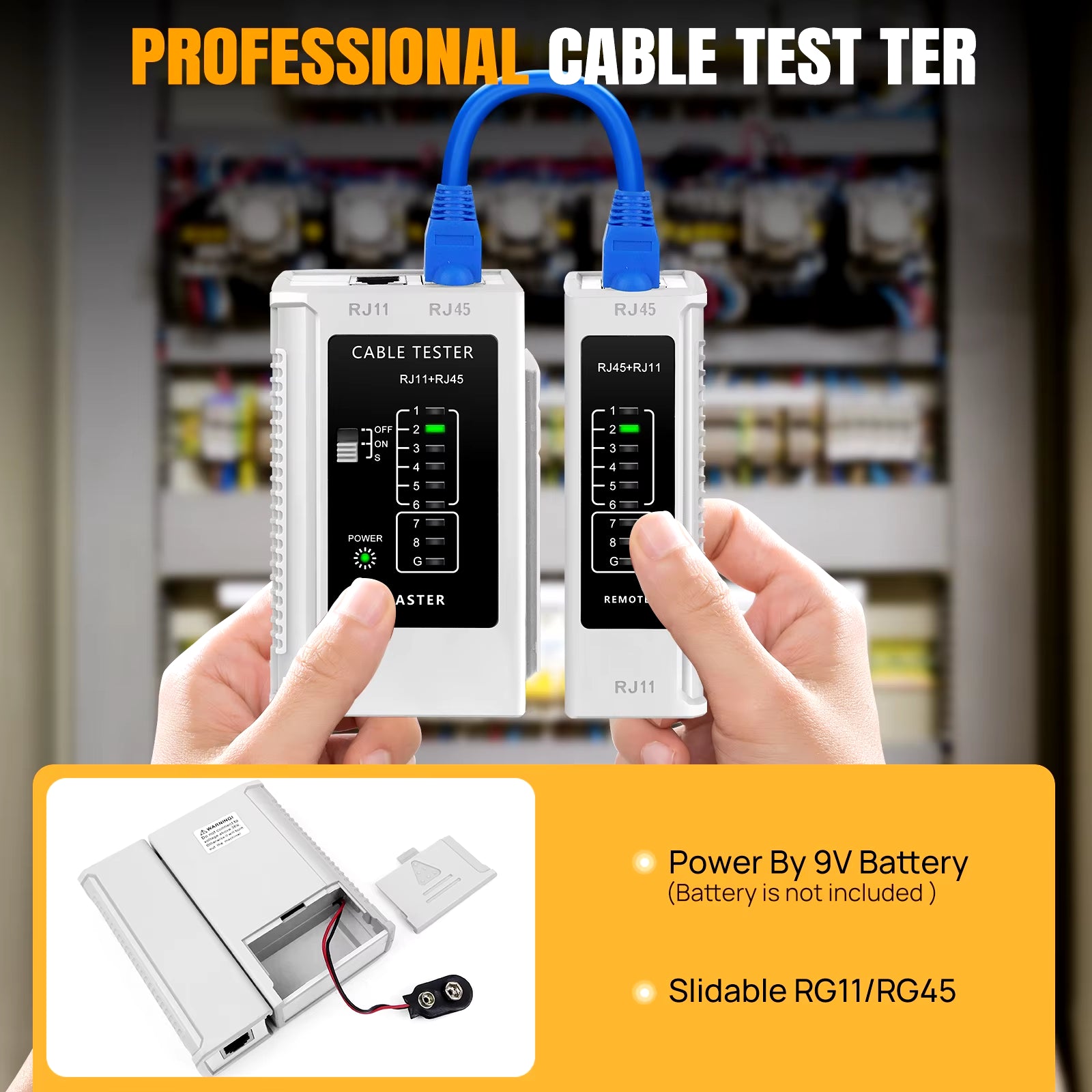

Phone/Network Cable Tester - Network Cable Tester for cables with RJ45/RJ11/RJ12 Connector (9V battery not included)； We can test our just finished cable in this tester, and we will quickly know whether this cable work or not

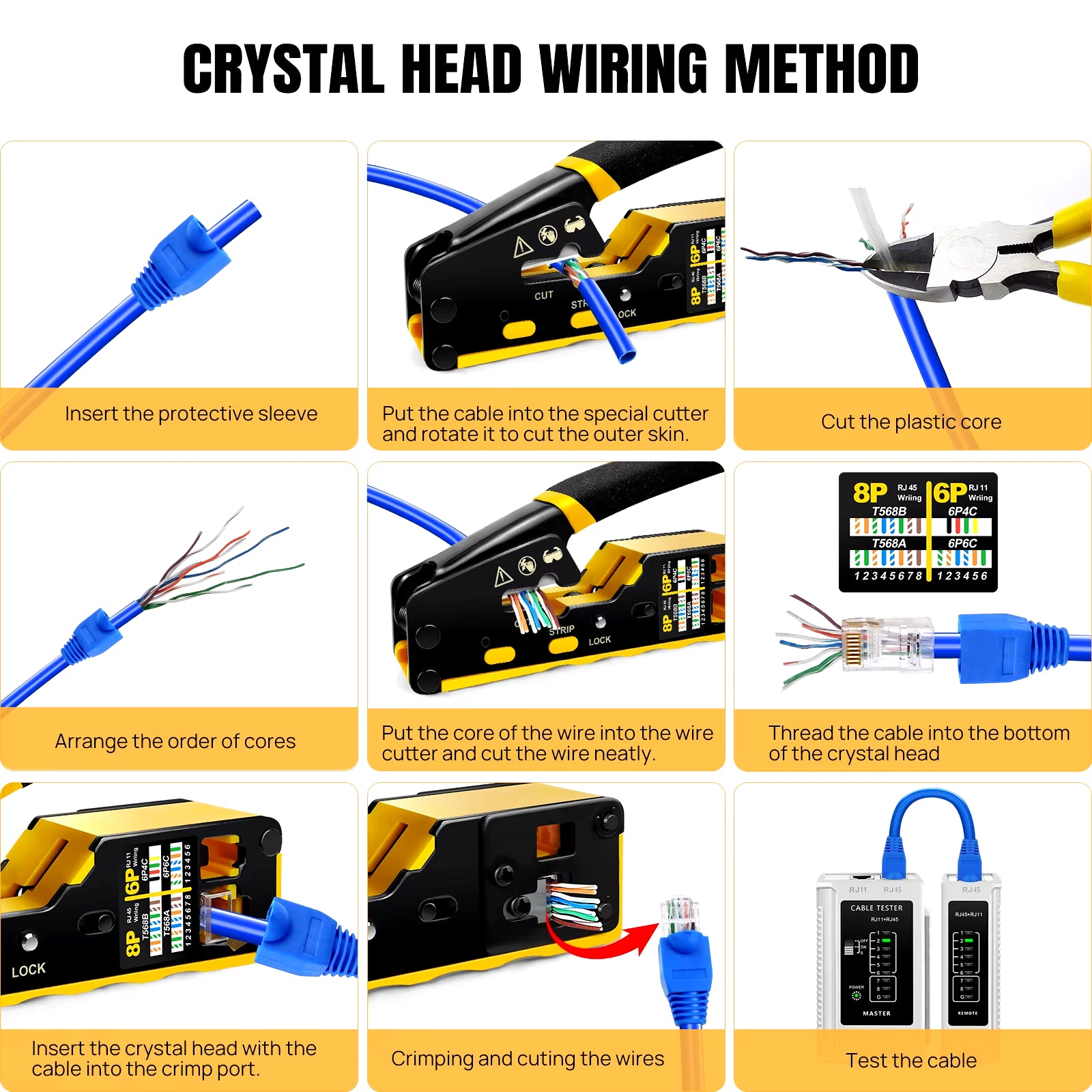

How To Make a RJ45 Ethernet Cable Connector?

1.Putting the Blue Cover Boots into the cable inadvace.

2.Put the cable into the stripping port of the pass through rj45 crimper.

3.Hold the rj45 ethernet crimper or use mini wire stripper and rotate the cable on 360 degrees to strip the cable. (Note: Don't crimp too much tightly to avoid damaging the internal cable).

4.Line up the eight colors of the cable according to T568A standard or T568B- (T568B Standard used in home more widely).

5.After line up the eight colors of the cable, you should cut the wires neatly through the cutting port blade of the rj45 ethernet crimper.

6.Please insert the sequential cable into the end of the crystal connector. When inserting the cable into the crystal connector, hold the cable tightly to avoid the wrong sequence.

7.Insert the network cable with crystal connector into the 8P crimping port.

8.Squeeze the handle hard and release then, pull out the crystal connector.

9.The rj45 Ethernet Cable connector is completed.

Function analysis of network cable pliers:

1. 8-core 6-core crystal head pressing, 8-core through-hole crystal head pressing

2. Cutting and stripping wires

3. This product has an 8P pressure interface with a tangent blade on the back, which supports crimping of through-hole crystal heads

Wire sequence for crystal head wiring:

1. The pressure interface on the tool pliers has stickers that can be aligned with the wire slot and inserted into it

2. The crimping sequence of the two crystal heads must be the same, otherwise they cannot be powered on

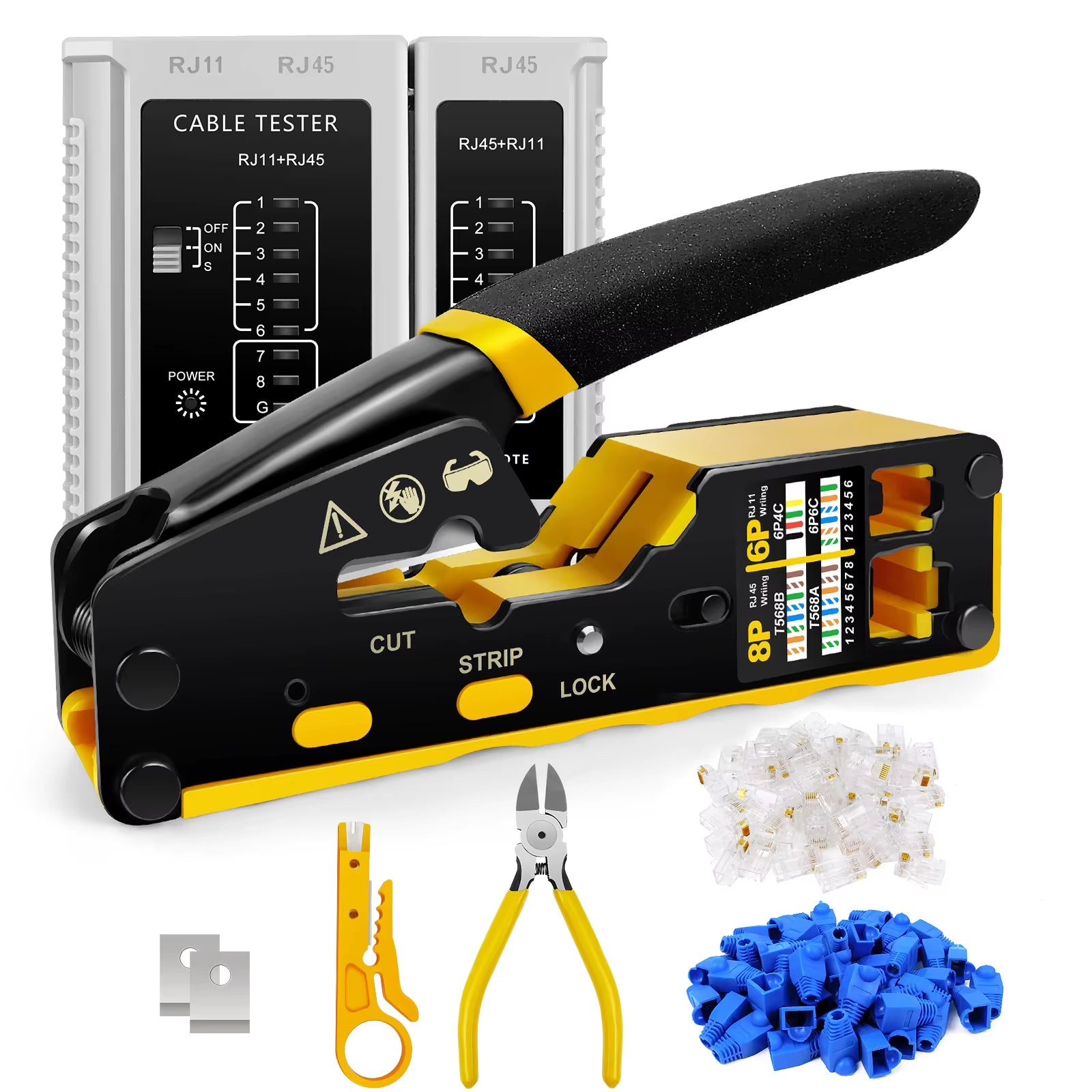

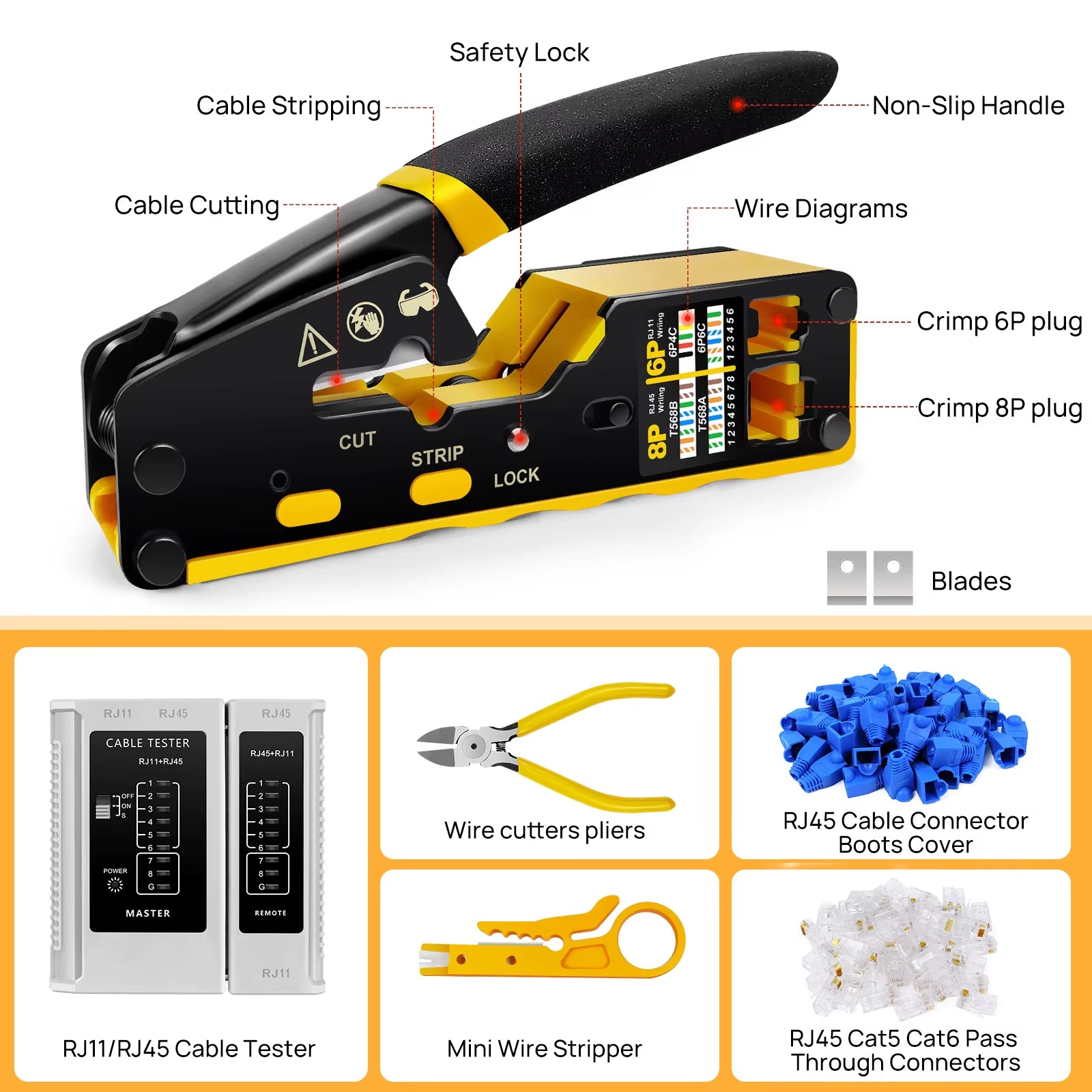

The packaging contains:

1x Dual purpose crimping pliers

1x Network tester

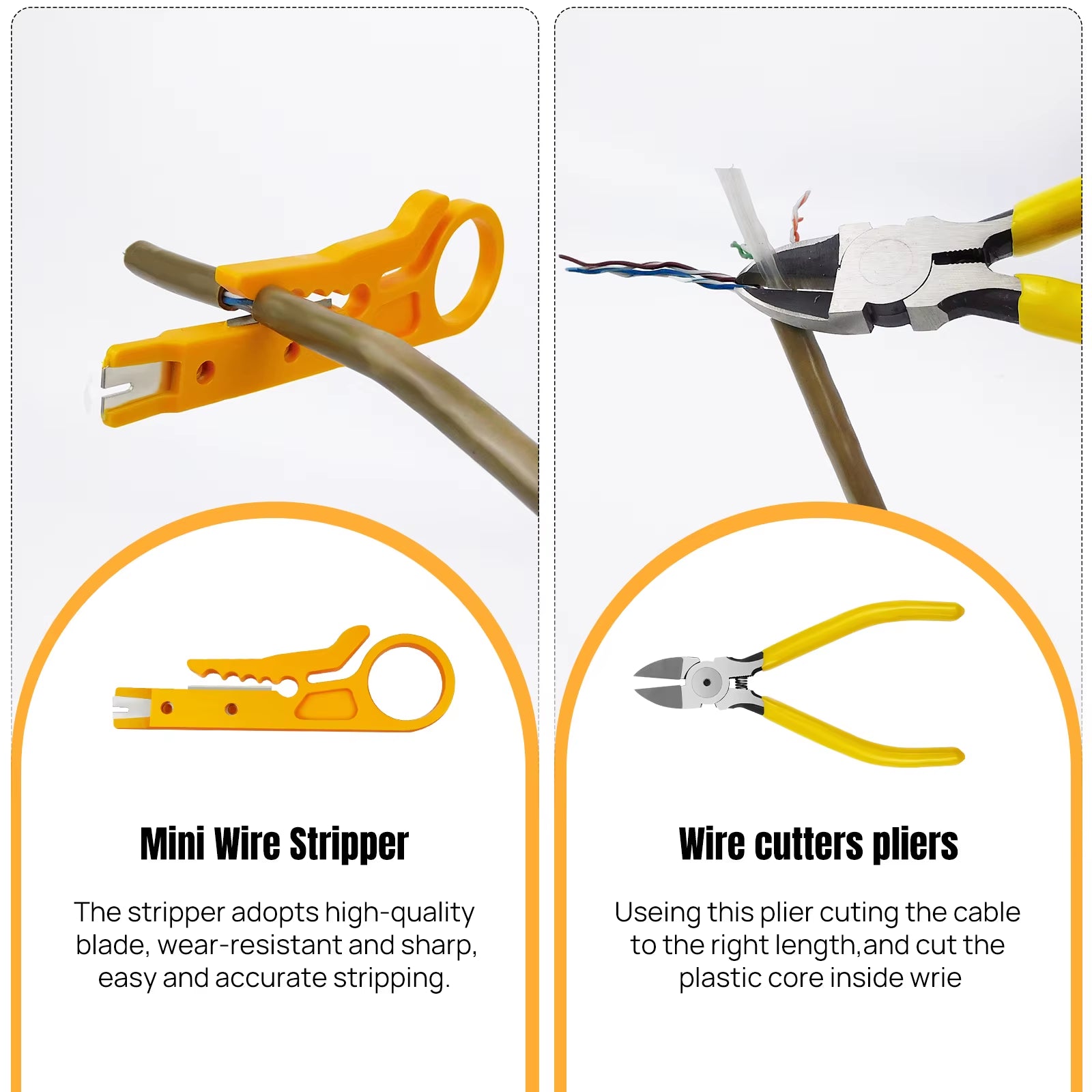

1x Multi functional wire stripper

1x Pliers

1x Spare disassembly blade

50x Crystal Head

50x Crystal Head Protective Cover
