20 Inch 2-Stroke Petrol Gas Chainsaw Professional Power Chain Saw For Forest Cutting Wood Trees Log For Garden Farm Use 52cc

Description

Colour: Blue
Style: Modern
Model: 5800
Assembly Required: Yes
Material: Nylon, Mn Steel, Aluminium
Engine Type: Single Cylinder, Air-cooled, 2-Stroke
Ignition System: Self-reset Pull Start
Fuel Tank Capacity: 550ml/18.6Oz
Chain Fuel Tank Capacity: 140ml/4.73Oz
Bore: 45.2mm/1.78inch
Volume: 110dB
Power: 2.4kw
Speed: 10000rpm
Displacement: 52cc
Oil Mixture: 25:1(90# Gasoline: Oil)
Chain Length: 50cm/20inch
Max. Cutting Diameter: 50cm/20inch

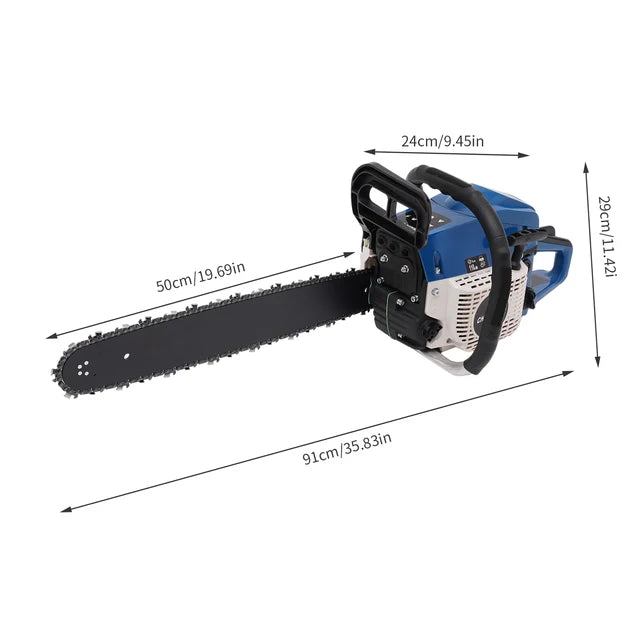

Overall Size: 91*24*29cm/35.82*9.44*11.41inch
Package Size: 50*27*30cm/19.68*10.63*11.81inch
Gross Weight: 7.5kg/16.53 lbs
Net Weight: 7kg/15.43 lbs

Package Included
1* Gas Chainsaw
1* Chain
1* Guide Bar
1* Chain Bar Cover
1* Fuel Tank
1* Tool Bag
1 Pair* Gloves
1* Screwdriver
1* Funnel
1* English Manual
Other Accessories for Assembly

Key Features

Build to Last: It is made of high-quality nylon housing, aluminium handle, and Mn steel guide bar & chain, which is insulating, strong, durable, wear-resistant, and not easy to deform.

Excellent Performance: The 2-stoke engine with 58cc displacement, 10000rpm high speed, and 2.4KW high power, the high-magnetic flywheel with thickened blade design, the filter, the pressure-reducing valve, and the 20" guide chain can achieve fast cutting, thus providing excellent performance(about 20" cutting diameter).

High Safety: The double protection switches that must be pressed at the same time to work can prevent the machine from accidentally starting. The heat-sink holes on the machine also ensure good heat dissipation. Moreover, the guide plate has an inertia-activated chain brake to reduce the possibility of injury due to recoil, and the practical gloves and the widened brake baffle that makes emergency braking can protect your hands from hurting, avoid sawdust splashing, and improve safety.

Fuel Tanks: The 18.6Oz translucent fuel tank and 4.73Oz chain fuel tank allow for large capacity, a convenient mixture of fuels, and long-term use without frequent filling.

Application

It is suitable for forest harvesting, cutting wood, pruning branches, gardening, home woodworking, bamboo sawing, logging, light felling, DIY crafts, ranches, farms, and so on to meet different needs.

How to Assemble the Chainsaw

1.Install the jam teeth in the right direction.
2.Install the guide bar.
3.Install the chain.
4.Cover the side cover.
5.Adjust the chain tightness.
6.Tighten the screw.

Notes

1.Before starting the gasoline chainsaw, please ensure that it fits well with the guide bar, and use a wrench to adjust the chain. When installing the guide bar, please note that the screw column on the side cover must be aligned with the guide bar hole before installation(The function of the screw column is to adjust the chain tightness.).
2.Please use gasoline 90# with special 2-cycle engine oil and never use pure gasoline. Gasoline and oil mixture ratio: 25:1.
3.Adjustment of oil output: the oil output can be controlled to turn larger to the left and smaller to the right.
4.Please note that after the first ignition sound, closing the choke and repeatedly pulling the start handle will suck in too much fuel and prevent the engine from starting.
5.If the choke knob is not fully pushed back after pulling the starter handle up to 6 times, the engine preheating may be missed. Too much fuel will flow out and submerge the spark plug. Then you can't start the chainsaw.
6.The damper is used to regulate air intake. When the engine is cold or not used for a long time, the damper needs to be pulled. If the engine is hot, it can be started directly. This is the same as the principle of starting a motorcycle! Close the damper, pull the start handle again 1-3 times to start it, and then you can use it normally.
7.Please pay attention to the tightness of the chain during installation (Pull the chain by hand. The distance between the chain and the guide plate is 0.12-0.2 inches.), otherwise, it will affect the use effect.
8.After the chainsaw is started (The oil filler door must be empty.), it must wait for the chain to receive oil before starting to work(The oil pump will discharge oil and the ground will become wet.).
9.The carburetor must be cleaned after every 100H of operation before use. The air filter must be cleaned after 8H of operation.
10.When the chainsaw is not in use, it is better to pack it in plastic bags to avoid dust and water entering the machine and affecting its use. If the chainsaw is not used for a long time, the fuel oil in the tank must be cleaned.
11.Please read the manual completely before installation and use, and pay particular attention to the safety instructions included.
